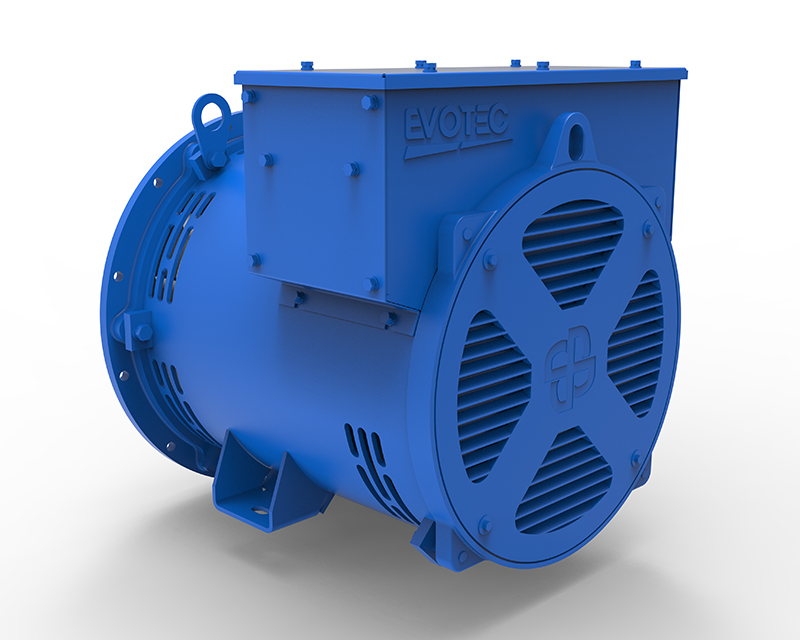

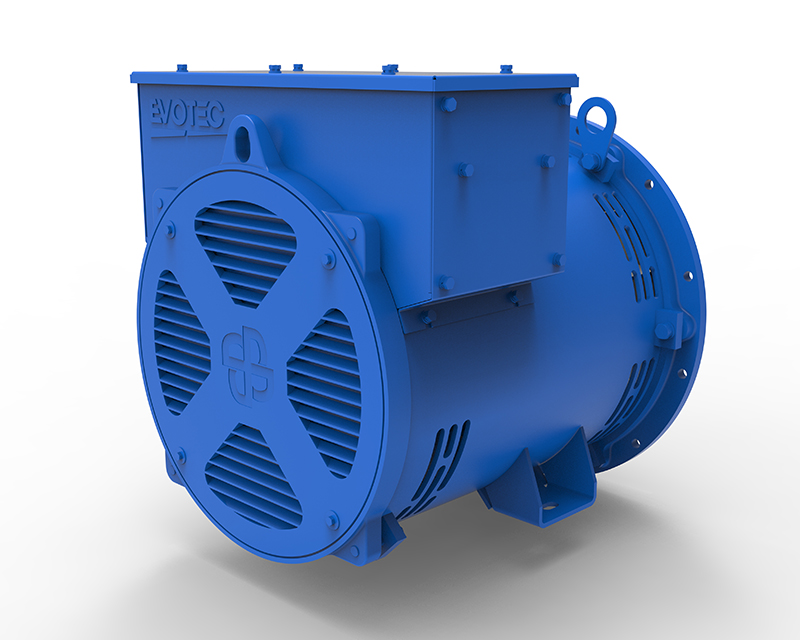

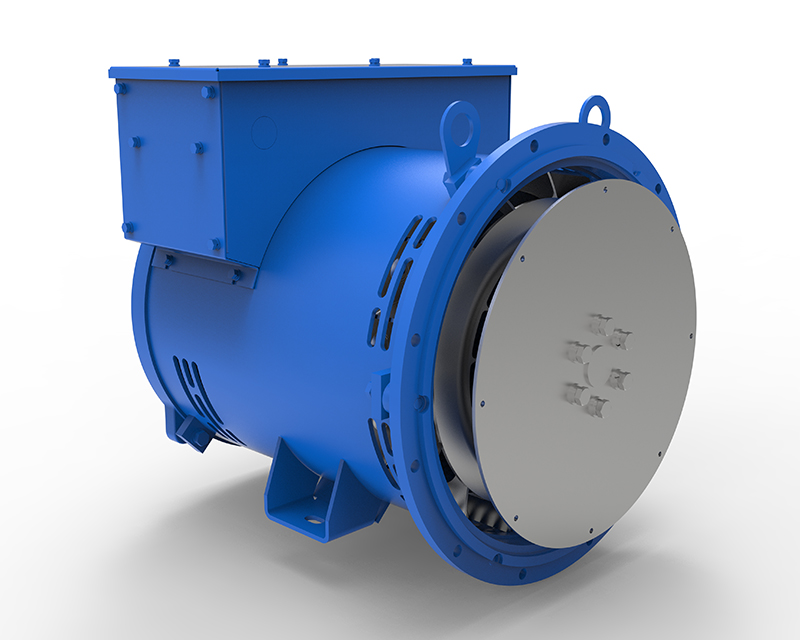

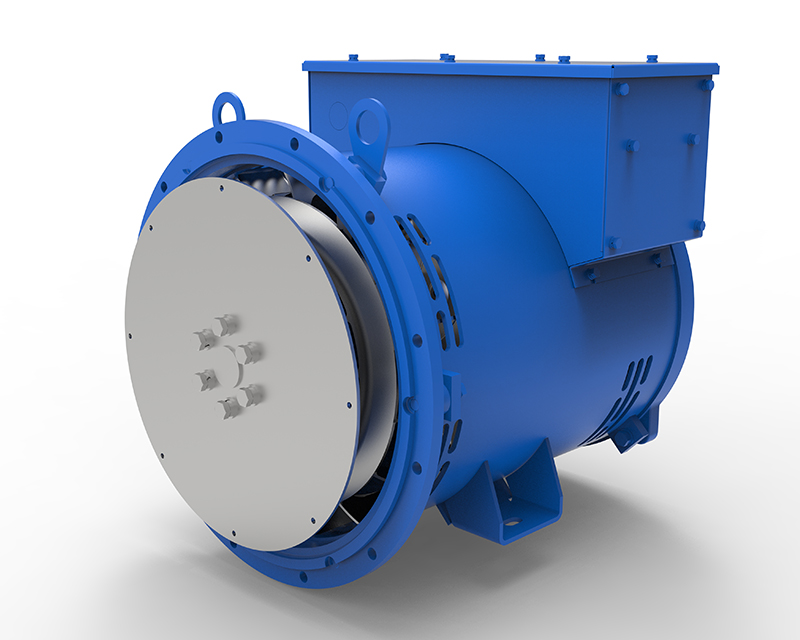

EVO-TD6.4~40kW Short-Shaft Generator
The EVO-TD series short-shaft generator is designed for military, vehicle-mounted, telecommunications, rental, and other markets, particularly in applications where there are specific restrictions on generator length. It complies with the requirements of GB/T 755 and relevant international standards such as IEC 60034-1; CEI 2-3; BS 4999-5000; VDE 0530; NF 51-100, 111; OVE M-10; and NEMA MG 1.22.
  • Power Range

    7.5/60kVA

  • Voltage Range

    380/480V

  • Frequency

    50/60Hz

  • Pole

    4

  • Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Specification
  • Rated Power:
  • 6kw-38kw
  • Rated Voltage:
  • 380V/480V
  • Speed:
  • 1500rpm/1800rpm
  • Frequency:
  • 50hz/60hz
  • Pole;
  • 4
  • Insulation Grade:
  • H
  • Protection Grade:
  • IP23
  • Temperature Rise:
  • 125K/40℃
  • Options
  • Optional Parts:
  • Space Heater
  •
  • Auxiliary Winding Excitation
  •
  • Droop Current Transformer in Parallel Operation
  •
  • Remote Voltage Potentiometer
