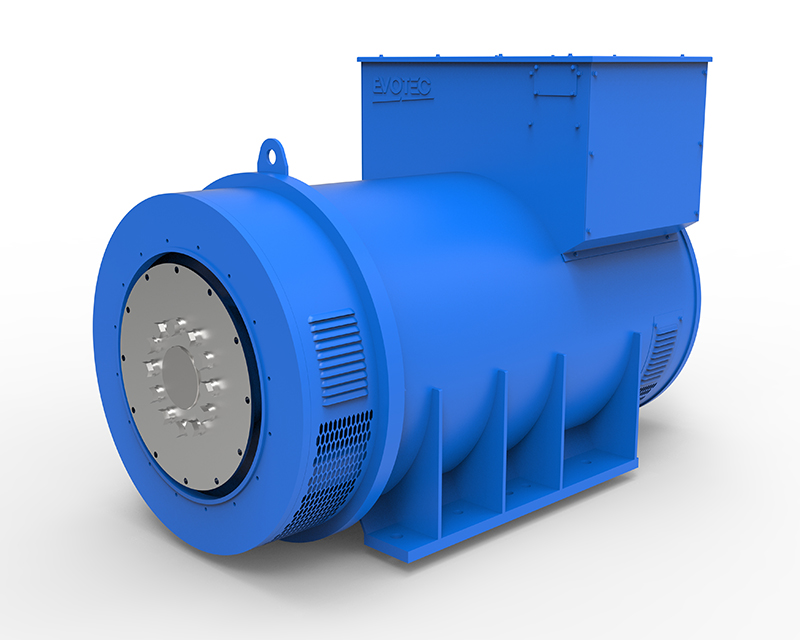

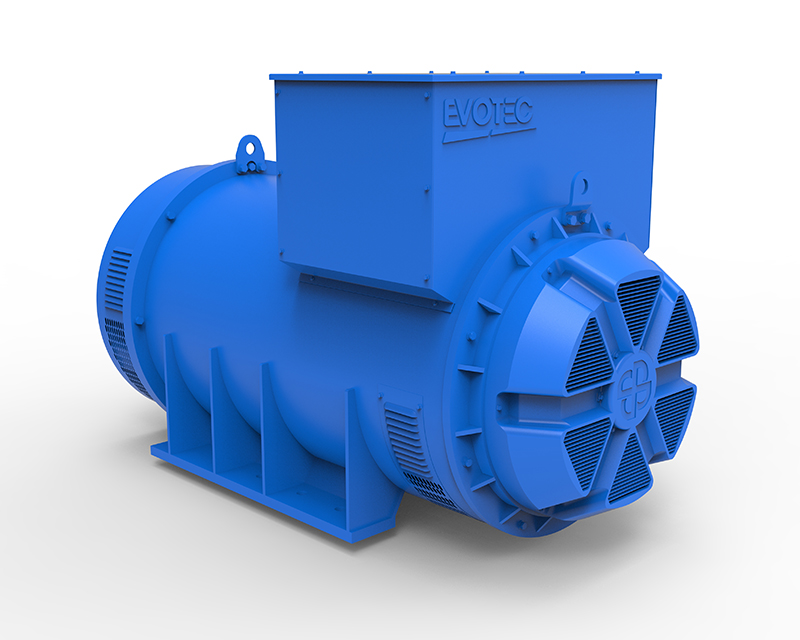

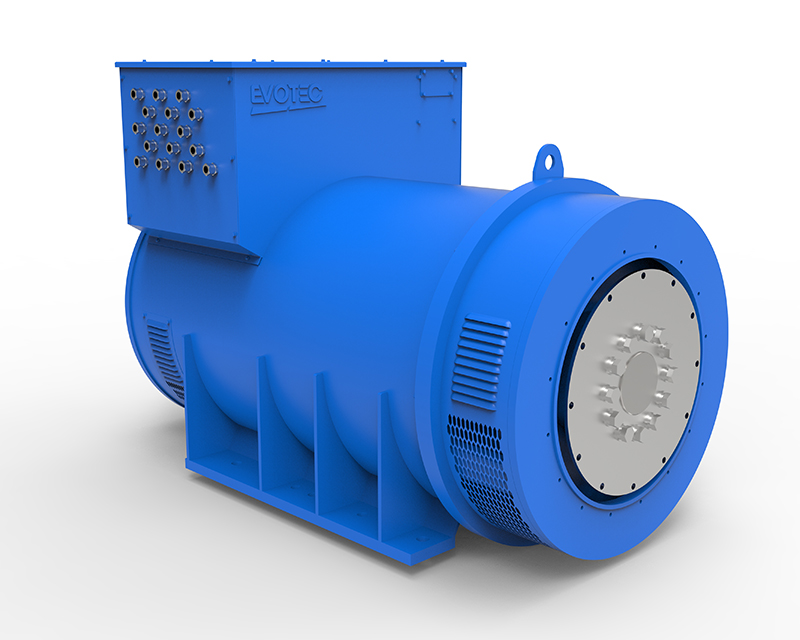

TCM468 Series Marine Generator 1400/1650kVA,400/480V,50/60Hz,4/6Pole

EvoTec's TCM468 series marine generators have a power range of 1400-1650kVA and are professional generators independently designed and developed by EvoTec. With the addition of marine varnish to the primary alternator, this series of generators are waterproof, making them suitable for use on different ships.

Despite not being a large power generator, the TCM468 series also exhibits the characteristics of EvoTec high-efficiency generators, including high operating efficiency and rapid response speed.

As a manufacturer of high-output marine alternators, EvoTec's TCM468 series is rated at 1400-1650kVA, 400/480V, with marine coating, and is suitable for use in 1400 kVA generator sets.

  • Power Range

    1400/1650kVA

  • Voltage Range

    400/480V

  • Frequency

    50/60Hz

  • Pole

    4/6

  • Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Specification
  • Rated Power:
  • 1120kw-1320kw
  • Rated Voltage:
  • 400V/480V
  • Speed:
  • 1500rpm/1800rpm
  • Frequency:
  • 50hz/60hz
  • Pole;
  • 4/6
  • Insulation Grade:
  • H
  • Protection Grade:
  • IP23
  • Temperature Rise:
  • 115K/45℃
  • Options
  • Optional Parts
  • 1.Winding temperature detector (PT100)
  •
  • 2.Thermistor for winding temperature protection (PTC)
  •
  • 3.Bearing temperature detector( PT100)
  •
  • 4.Anti-radio interference suppressor
  •
  • 5.Parallel droop current transformer(CT)
  •
  • 6.Manual voltage adjustment potentiometer
