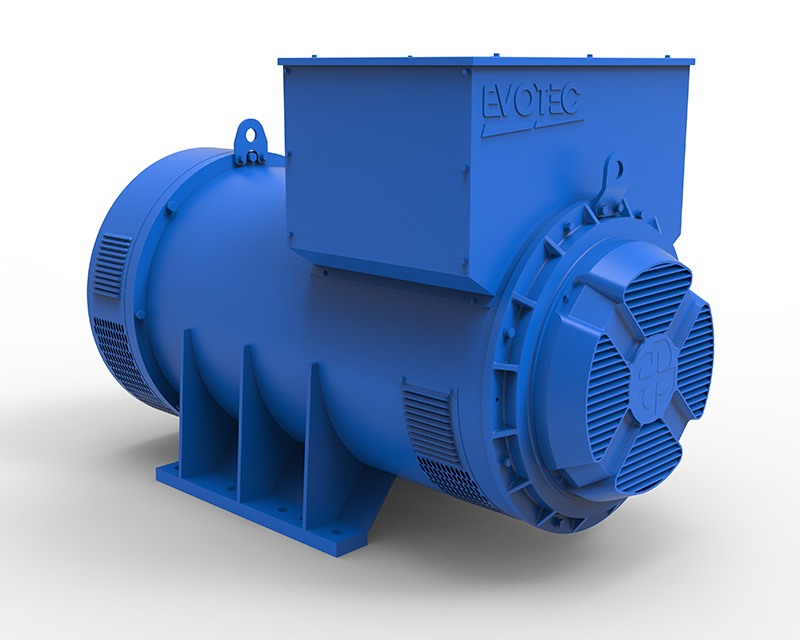

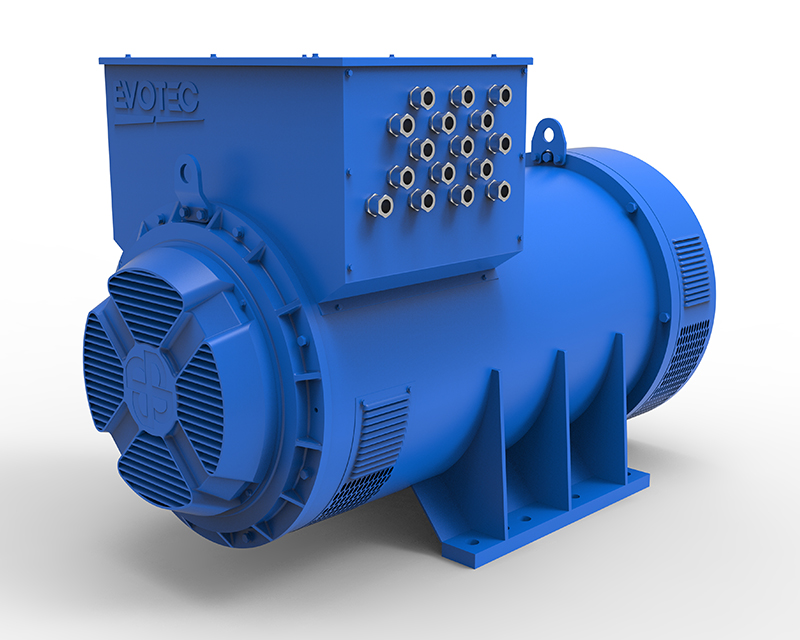

The TCM428 series marine generators have a power range of 750-1250kVA, and are professional generators independently designed and developed by EvoTec. With the addition of marine varnish to the primary alternator, this series offers fully waterproof alternators, making them ideal for use on different ships.

The TCM428 series also retains the exceptional qualities of EvoTec’s high-efficiency generators, delivering high operating efficiency and fast response times.

Advantages:

1. Additional marine varnish ensures moistureproof, mould proof, and anti-fogging properties.

2. 40 design patents, including 3 patents for appearance.

3. A warranty period of 24 months, much longer than that offered by other marine generators.

4. All materials are procured from publicly listed companies.

Characteristics:

1. Standard SAE interface for easy installation and strong versatility

2. Standard IP23 protection rating

3. Three excitation modes available: self-excitation, auxiliary winding, PMG

4. Standard 2/3 winding pitch

5. Fast start-up, high efficiency, and strong overload capacity

6. Advanced automatic voltage regulator control

7. Voltage regulation within +/-0.5%

8. Low waveform distortion (THD < 3%)

9. High-speed balanced rotor with sealed bearings

10. National patent protection
