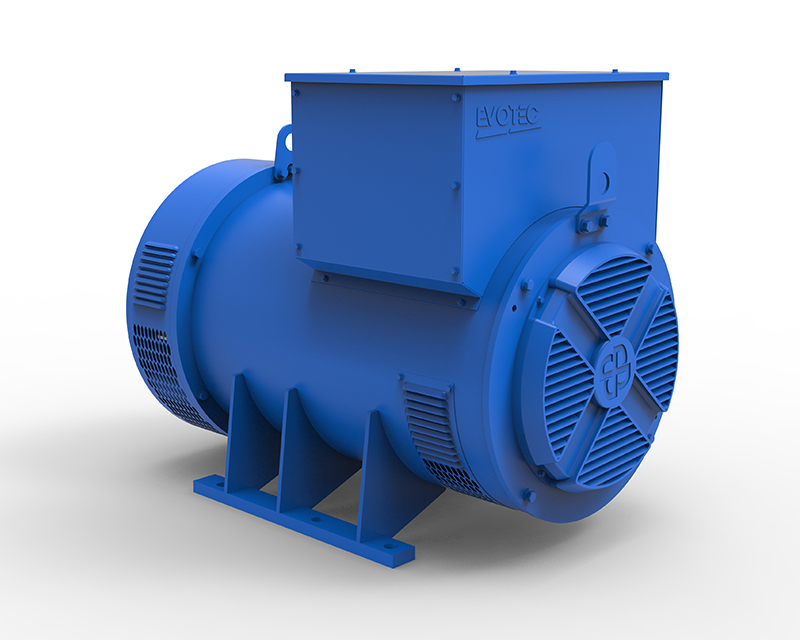

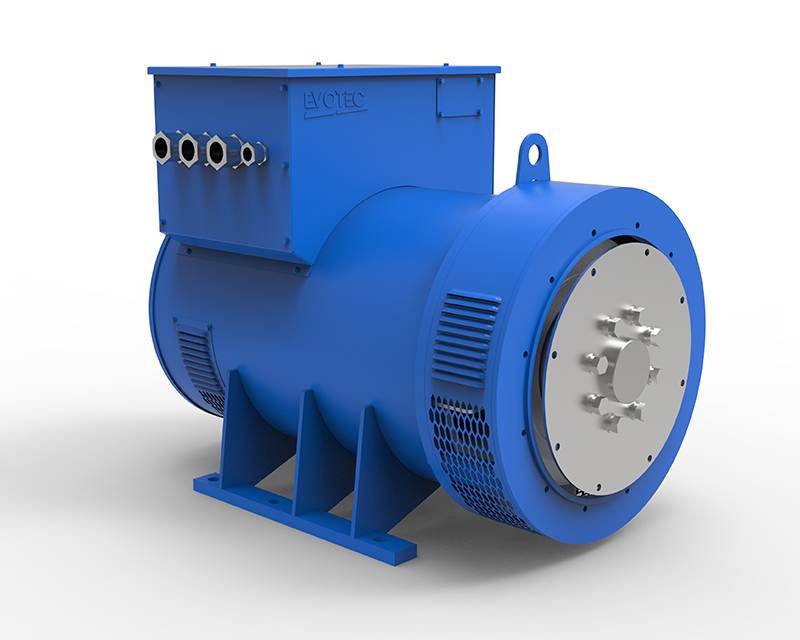

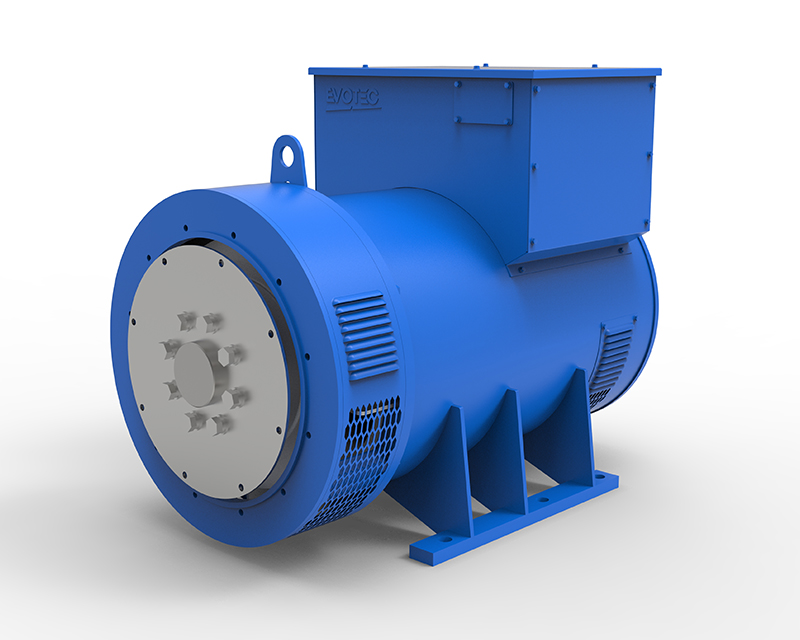

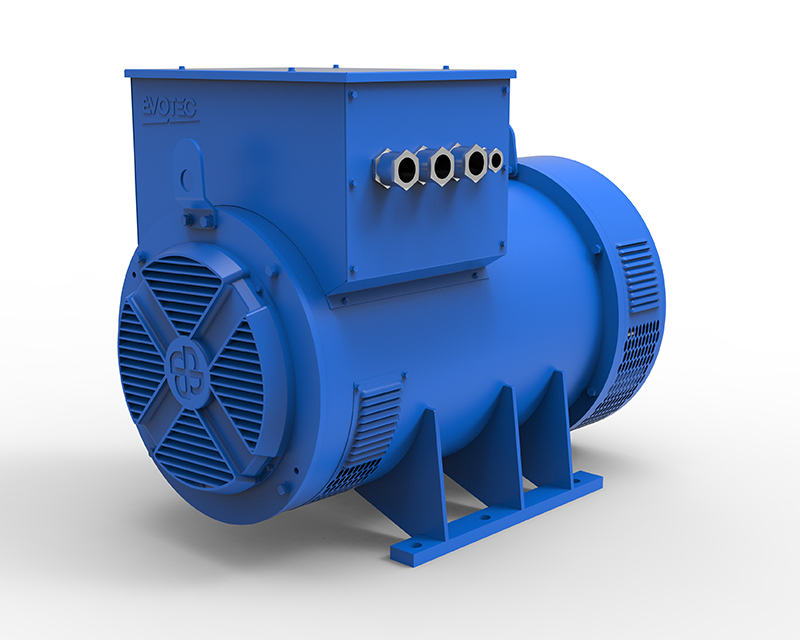

TCM318 Series Marine Generator 313/410kVA,400/480V,50/60Hz,4/6Pole

EvoTec's TCM318 series marine generators have a power range of 313-410kVA and are small professional generators independently designed and developed by EvoTec. With the addition of marine varnish to the primary alternator, this generator series is waterproof and suitable for use on different ships.

The TCM318 series also exhibits the characteristics of EvoTec high-efficiency generators, including high operating efficiency and rapid response speed. This series is designed to supply outboard alternators for 300 kVA generator and marine generator sets, with a rating of 313-410 kVA, 400/480V.

  • Power Range

    313/410kVA

  • Voltage Range

    400/480V

  • Frequency

    50/60Hz

  • Pole

    4/6

  • Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Specification
  • Rated Power:
  • 250kw-328kw
  • Rated Voltage:
  • 400V/480V
  • Speed:
  • 1500rpm/1800rpm
  • Frequency:
  • 50hz/60hz
  • Pole;
  • 4/6
  • Insulation Grade:
  • H
  • Protection Grade:
  • IP23
  • Temperature Rise:
  • 115K/45℃
  • Options
  • Optional Parts
  • 1.Winding temperature detector (PT100)
  •
  • 2.Thermistor for winding temperature protection (PTC)
  •
  • 3.Bearing temperature detector( PT100)
  •
  • 4.Anti-radio interference suppressor
  •
  • 5.Parallel droop current transformer(CT)
  •
  • 6.Manual voltage adjustment potentiometer
