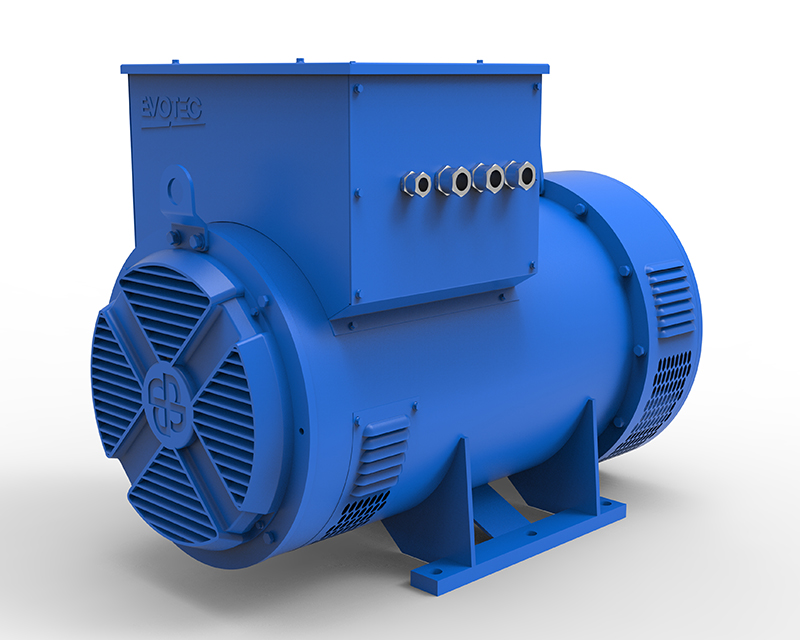

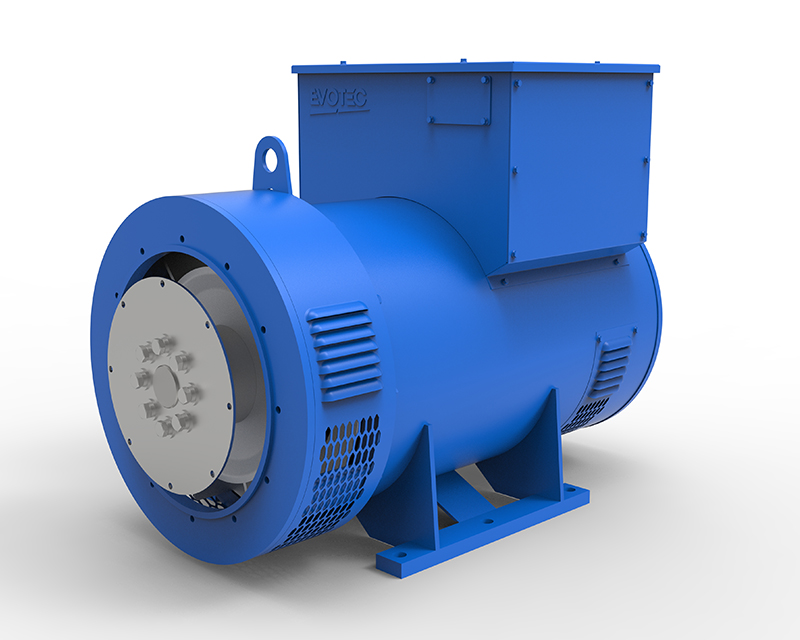

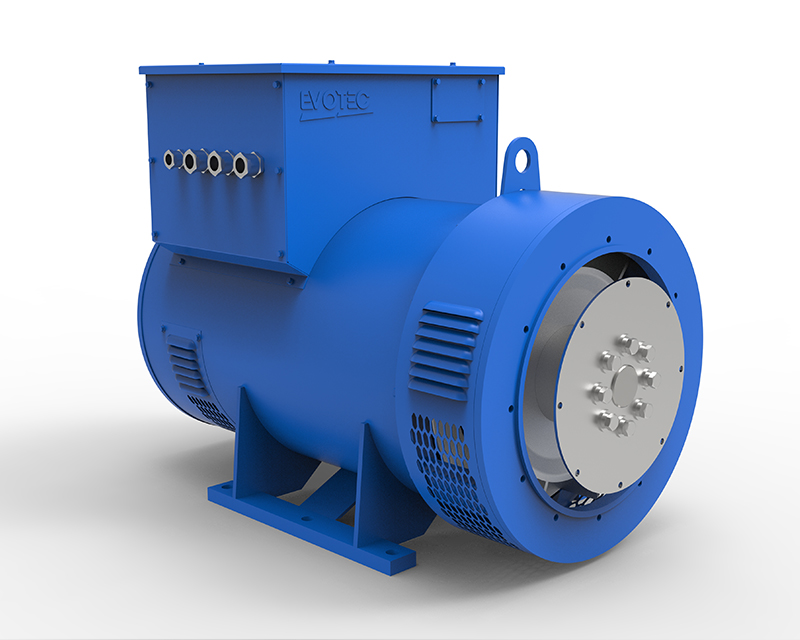

TCM288 Series Marine Generator 188/281kVA,400/480V,50/60Hz,4/6Pole

The power range of TCM288 series marine generators is 188-281kVA, which is a small professional generator independently designed and developed by EvoTec. After adding marine varnish to the basic alternator,this series of generators are all waterproof alternator, suitable for sailing on different ships.

 Even if it is not a large power generator,the TCM288 series also has the characteristics of a EvoTec high-efficiency generator,high operating efficiency and high response speed.



Advantages:

1. Additional marine varnish to ensure Moistureproof, Mould Proof, Anti-fogging;

2. 40 design patents, 3 patents on appearance;

3. Warranty periods of 24 months is much longer compared to others;

4. All the materials are procured from the Public List Companies;


Characteristics

1.Standard SAE interface is easy to install and has strong versatility

2.Standard IP23 protection degree

3.Three optional excitation modes, self-excitation, auxiliary winding,PMG

4.Standard winding pitch 2/3

5.Fast start-up,high efficiency, strong overload capacity

6.Advanced automatic voltage regulator control

7.Voltage regulation +/-0.5%

8.Small waveform distortion rate,THD<3%

9.The rotor is balanced at high speed,bearing adopts sealed bearing

10.National patent

  • Power Range

    188/281kVA

  • Voltage Range

    400/480V

  • Frequency

    50/60Hz

  • Pole

    4/6

  • Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Hello! The file is encrypted, if you need to download, please contact our customer service staff. Please contact us by email: info@evotecpower.com
    x
    Specification
  • Rated Power:
  • 150kw-240kw
  • Rated Voltage:
  • 400V/480V
  • Speed:
  • 1500rpm/1800rpm
  • Frequency:
  • 50hz/60hz
  • Pole;
  • 4/6
  • Insulation Grade:
  • H
  • Protection Grade:
  • IP23
  • Temperature Rise:
  • 115K/45℃
  • Options
  • Optional Parts
  • 1.Winding temperature detector (PT100)
  •
  • 2.Thermistor for winding temperature protection (PTC)
  •
  • 3.Bearing temperature detector( PT100)
  •
  • 4.Anti-radio interference suppressor
  •
  • 5.Parallel droop current transformer(CT)
  •
  • 6.Manual voltage adjustment potentiometer
